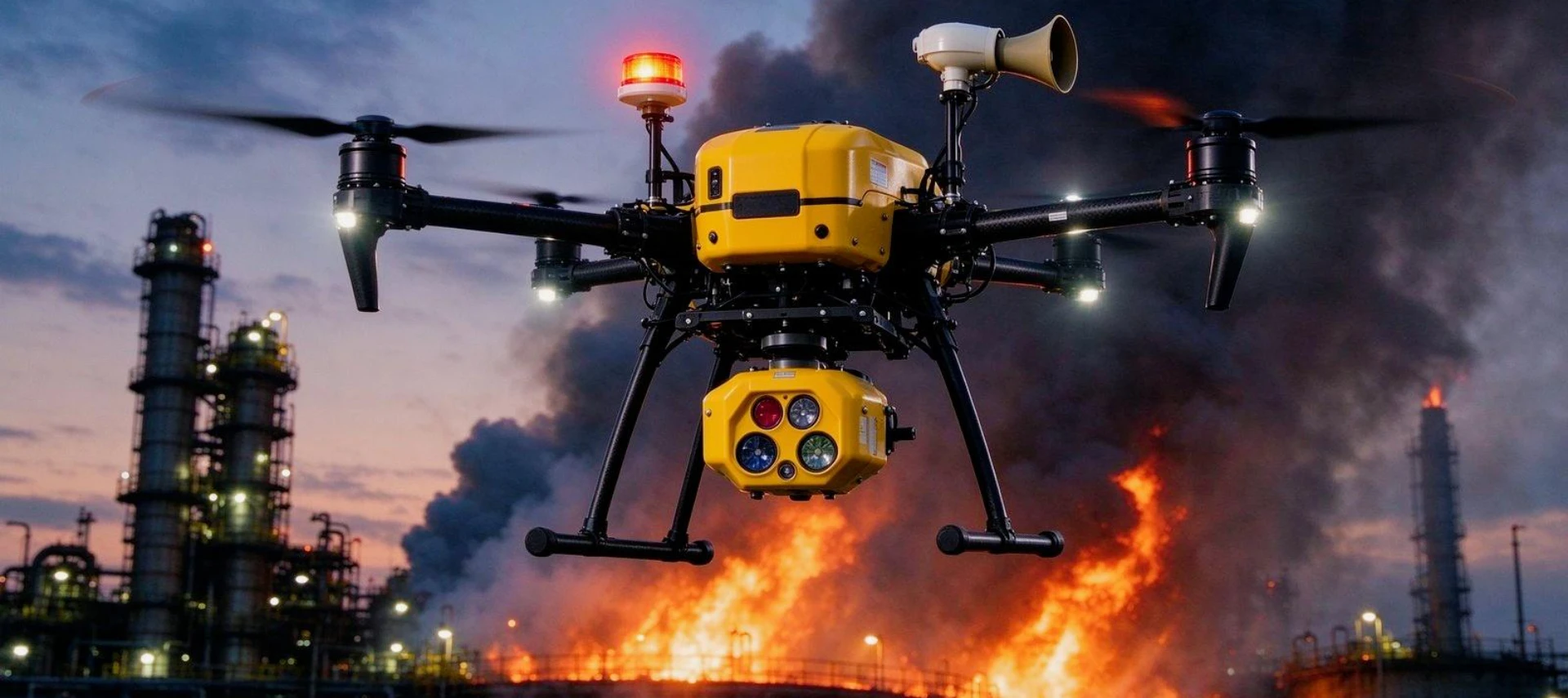

The HR-Emr Hazardous Environment Emergency Response UAV gives incident commanders a safe, fast picture of a chemical emergency before any personnel enter the scene. Launched within seconds, it flies into smoke plumes and affected areas to sample atmospheric conditions with a multi-gas payload covering combustibles, toxic gases and oxygen. High-visibility beacons and a loudspeaker support crowd control and on-scene messaging, while a live 4K camera and thermal view stream directly to the command vehicle. Triple-redundant flight systems and a ballistic-style quick release for the sensor pod keep the airframe recoverable in critical situations. Wind- and weather-tolerant construction means the HR-Emr is ready for fires, spills, leaks and natural-disaster response around the clock.
Technical Specifications
|
Parameter |
Value |
Note |
|
Max Flight Time |
30 min |
Fast-response configuration |
|
Multi-Gas Payload |
LEL, CO, H2S, SO2, O2 |
Selectable toxic-gas sensors |
|
Live Video |
4K EO + thermal |
Dual-stream to command |
|
Audio / Light |
Loudspeaker + strobe |
Scene control & alerting |
|
Reaction Time |
< 60 s to airborne |
One-key emergency launch |
|
Wind Resistance |
14 m/s |
Storm-grade operation |
|
Redundancy |
Triple-redundant flight |
Mission-critical safety |
|
Data Link |
4G/5G + mesh relay |
Beyond-line-of-sight video |
Core Operation Parameters
|
Monitoring Parameter |
Standard Normal Range |
Alarm Threshold |
Monitoring Purpose |
|
Combustible Gas (LEL) |
< 5 % LEL |
Alarm > 20 % LEL |
Warn of ignition hazard in plume |
|
Oxygen Concentration |
19.5–23.5 % |
Alarm < 18 % |
Assess breathable atmosphere |
|
CO Concentration |
< 25 ppm |
Alarm > 50 ppm |
Exposure safety for responders |
|
Thermal Hot Spots |
Ambient ± 5 ℃ |
Alarm > 80 ℃ |
Locate fire/heat sources |
|
Battery SOC |
30–100 % |
< 20 % auto RTL |
Guarantee safe return to base |
