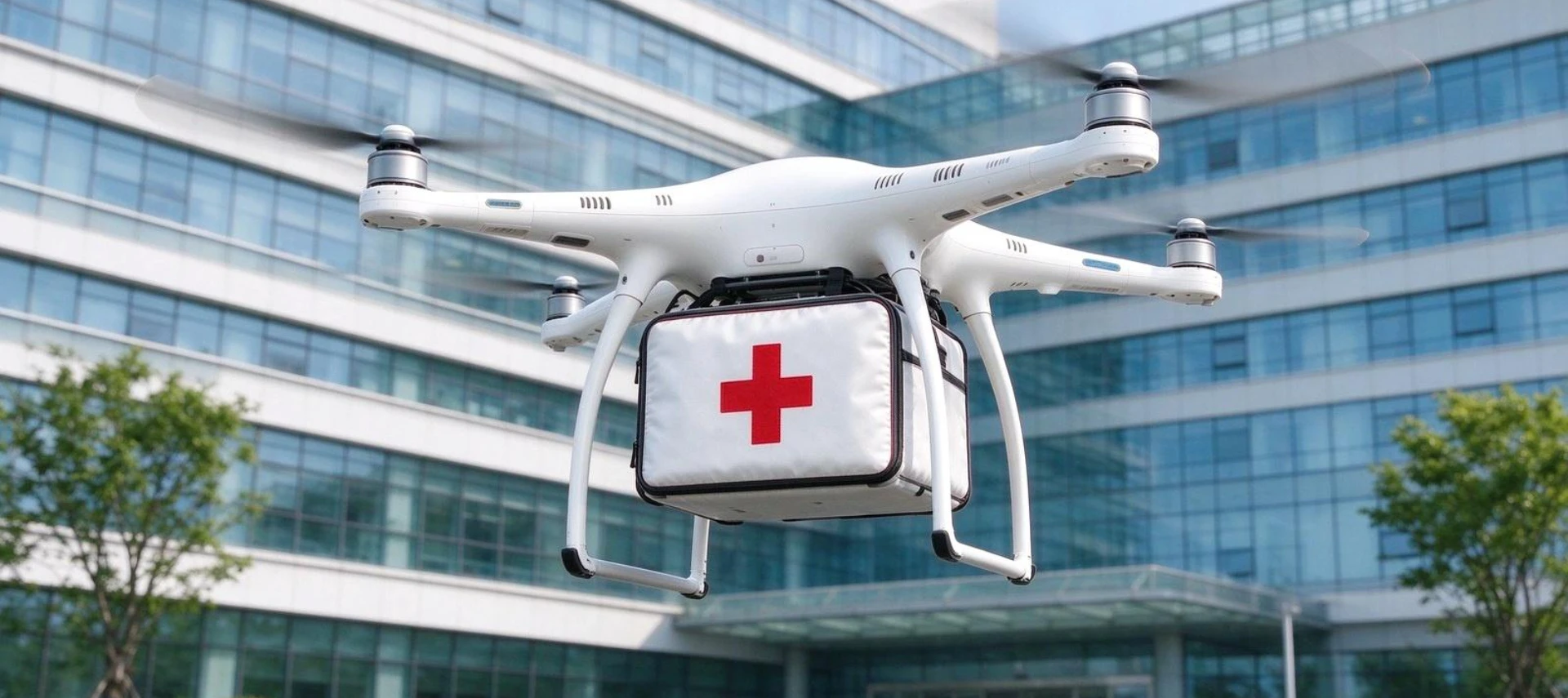

The MD-Med Medical & Emergency Delivery UAV is built to save time in time-critical logistics: emergency medicines, blood products, vaccines and field supplies. An insulated, GPS-tracked cargo pod holds a stable temperature for the whole flight, protecting cold-chain payloads from clinic to patient. Night-vision lights and all-weather construction support 24-hour dispatch, while redundant flight control and a return-to-home protocol guarantee mission safety. Fixed delivery zones and automated landing guidance let medical staff receive cargo with minimal handling. A complete flight log — temperature curve, route, timestamps and custody — is stored for traceability and cold-chain compliance. The MD-Med bridges the gap between central pharmacy and remote or congested care points.
Technical Specifications
|
Parameter |
Value |
Note |
|
Max Payload |
10 kg |
Insulated cargo pod |
|
Max Range |
30 km |
Cold-chain maintained |
|
Flight Time (No Load) |
40 min |
4-rotor configuration |
|
Cargo Pod |
Insulated + GPS tracked |
Stable temperature |
|
Temperature Stability |
2–8 ℃ configurable |
Cold-chain payload |
|
Navigation |
RTK + automated delivery zone |
Precision landing |
|
Night Operation |
NVG lights + all-weather |
24-hour dispatch |
|
Traceability |
Full flight & temp log |
Cold-chain compliance |
Core Operation Parameters
|
Monitoring Parameter |
Standard Normal Range |
Alarm Threshold |
Monitoring Purpose |
|
Cargo Temperature |
2–8 ℃ (configurable) |
Alarm outside range |
Protect medicines & blood |
|
Battery SOC |
30–100 % |
< 20 % auto RTL |
Guarantee safe return to base |
|
Wind Speed Limit |
< 12 m/s |
Hold when exceeded |
Safe medical delivery |
|
Landing Accuracy |
< 1 m at delivery zone |
Alarm > 3 m |
Precise payload handover |
|
Cargo Pod Sealed |
Closed & locked |
Alarm if opened mid-flight |
Prevent tampering |
