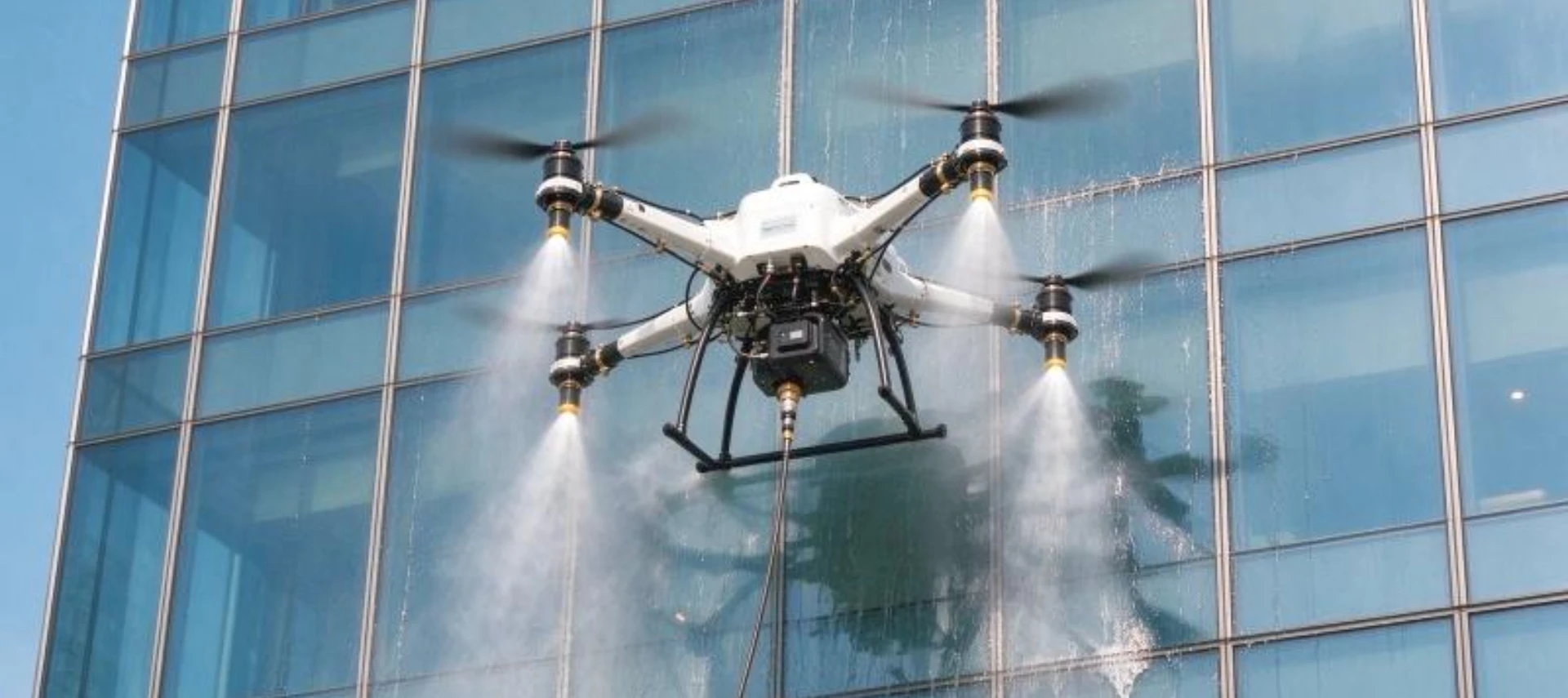

The HC-Fac High-Rise Facade Cleaning UAV brings exterior cleaning and inspection to tall buildings without scaffolding or rope-access crews. A tethered design supplies water and power from a rooftop unit, allowing continuous high-pressure cleaning of glass, metal and stone facades up to high altitudes. Precision nozzles deliver water or eco-friendly cleaning solution while maintaining a safe, controlled distance from the surface, reducing risk to personnel and damage to the building. An onboard camera gives operators a live close-up view, and cleaning progress is mapped and logged for reporting. When not washing, the same platform performs facade inspection, capturing HD imagery of cracks, sealant failures and loose panels. The HC-Fac turns a hazardous, labour-heavy job into a safer, faster, repeatable operation.
Technical Specifications
|
Parameter |
Value |
Note |
|
Cleaning Rate |
Up to 500 m²/h |
Pressure + eco solution |
|
Tether System |
Water & power supply |
Rooftop unit |
|
Working Altitude |
Up to 150 m |
High-rise capability |
|
Cleaning Mechanism |
High-pressure nozzles |
Glass, metal, stone safe |
|
Monitoring |
HD live camera |
Close-up operator view |
|
Inspection Mode |
HD imaging + log |
Facade condition survey |
|
Control |
Tethered remote |
Precise surface distance |
|
Safety |
Controlled standoff + tether |
Personnel & building safety |
Core Operation Parameters
|
Monitoring Parameter |
Standard Normal Range |
Alarm Threshold |
Monitoring Purpose |
|
Surface Distance |
15–40 cm from facade |
Alarm outside band |
Effective cleaning without damage |
|
Water Pressure |
Within rated band |
Alarm if out of range |
Consistent cleaning quality |
|
Tether Tension |
Within safe envelope |
Alarm if snagged |
Protect aircraft & cable |
|
Battery / Power |
Stable rooftop supply |
Alarm on fluctuation |
Continuous operation |
|
Cleaning Coverage |
≥ 95 % per pass |
Alarm if missed |
Uniform facade result |
