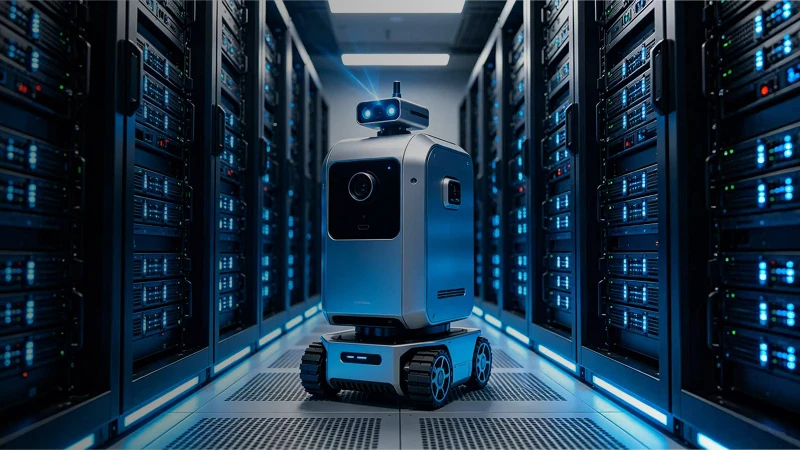

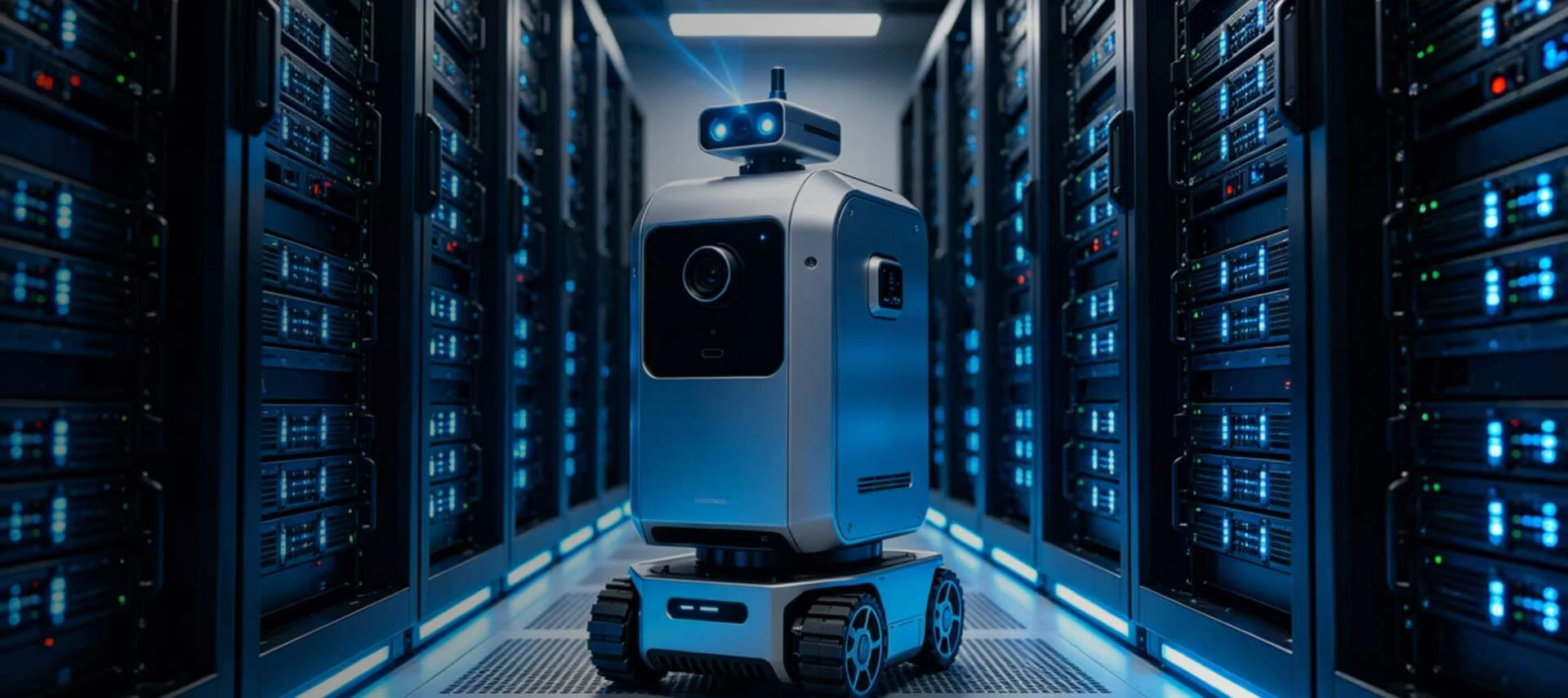

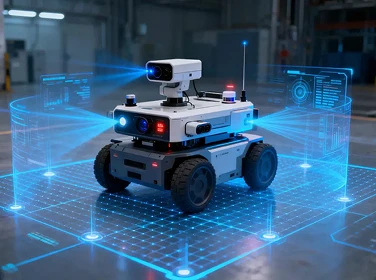

Data Center Inspection Robot

Test Parameters + Image Captions + Data Specifications

Combined with computer-room operation and maintenance scenarios, this document includes detailed parameters, reference data standards, image solutions and scenario copywriting, which can be directly used for brochures, PPTs, display boards and product introductions.

This inspection robot integrates four major modules: environmental perception, thermal imaging temperature measurement, AI vision and security monitoring. It collects more than ten core parameters including temperature, humidity, equipment temperature, dust, smoke and noise in real time. Strictly complying with data-center environmental specifications, it guarantees stable operation of IT equipment.

Home > Products > Robot Applications > Data Center Inspection Robot > Data Center Inspection Robot

Inquire Now >> Next Products >>

Core Test Parameters & Normal Standard Values

In accordance with GB 50174-2017 Code for Design of Data Centers, the key monitoring items, normal ranges, alarm thresholds and monitoring functions are sorted out as below:

Monitoring Parameter	Standard Normal Range	Alarm Threshold	Monitoring Purpose
Ambient Temperature	18 ℃ ~ 27 ℃	Warning: > 28 ℃ / Alarm: > 32 ℃	Prevent server & switch overheating and downtime, extend service life of equipment
Ambient Humidity	40 %RH ~ 60 %RH	Alarm: < 30 %RH / > 70 %RH	Avoid static electricity caused by low humidity and circuit-board condensation & short circuit caused by high humidity
Cabinet Surface Temperature	< 35 ℃	Alarm: > 38 ℃	Detect local hot spots, blocked air ducts and equipment overload
Air Inlet Temperature Difference	≤ 5 ℃	Warning: > 7 ℃	Evaluate cooling efficiency of air conditioners and rationality of hot & cold aisle layout
Air Dust Concentration	≤ 3.5 mg/m³	Warning: > 0.5 mg/m³	Prevent dust accumulation on mainboards and fans which may lead to equipment failure
Smoke Density	0 (No smoke)	Immediate alarm once smoke is detected	Early warning of computer-room fire for timely disposal
Noise Level	≤ 65 dB	Warning: > 70 dB	Identify abnormal noise of fans and motors, and judge equipment faults
Access Control & Regional Status	Normal closed state	Real-time alarm for unauthorized door opening	Computer-room security management and personnel access control
Equipment Indicator Status	Green (normal operation)	Red / yellow light (fault warning)	Visually check the running status of servers, UPS and switches
Local Thermal Imaging Temperature	Consistent with ambient temperature	Hot-spot alarm when single-point difference > 8 ℃	Accurately locate hidden high-temperature points and overheated cables

Supplementary Key Operation & Maintenance Data

Inspection Efficiency

A single robot completes full-coverage inspection of a 300 ㎡ computer room within 15–20 minutes, while manual inspection of the same area takes more than 2 hours.

Data Collection Frequency

All parameters are collected once every 2 seconds and uploaded in real time, supporting 7×24-hour uninterrupted monitoring.

Data Storage

Dual backup of local and cloud storage. Historical monitoring data is retained for no less than 1 year and supports traceability analysis.

Alarm Response

Acoustic & optical alarms and background messages are pushed within 3 seconds after abnormal data is triggered.

Image Categories & Descriptions

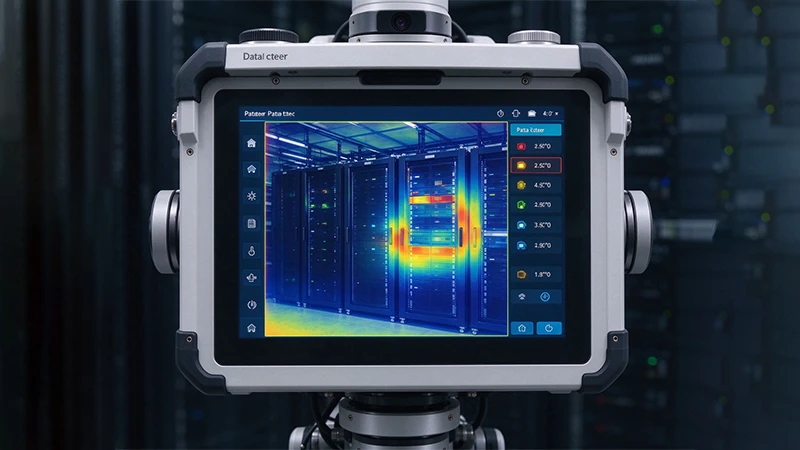

Thermal imaging temperature measurement view

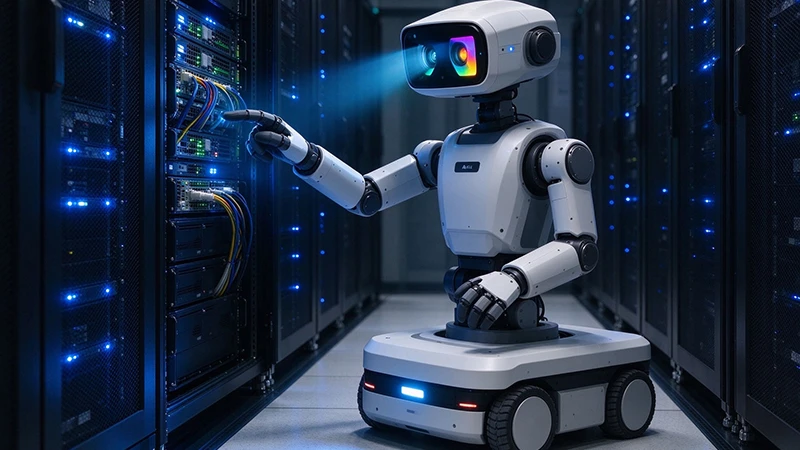

AI-vision equipment status recognition in a server room
