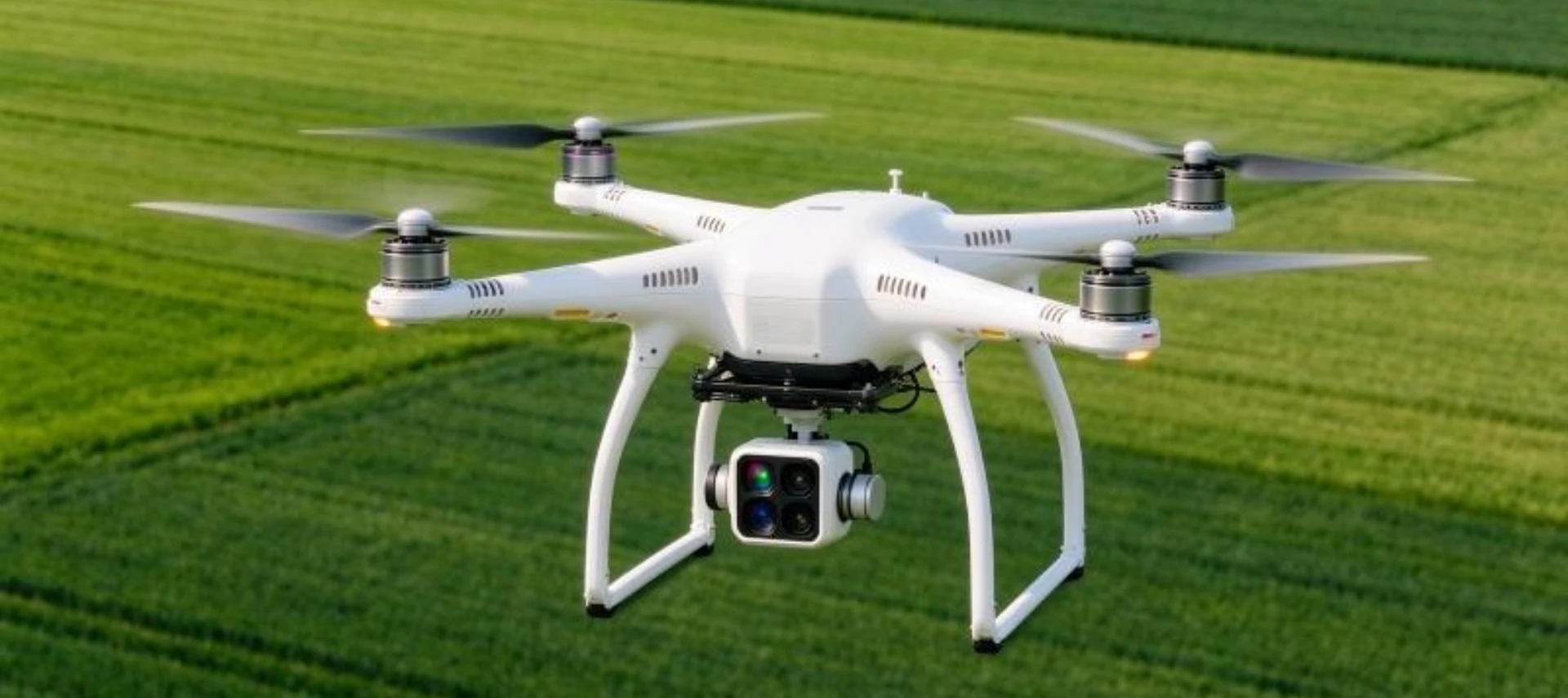

The PM-Ir Precision Irrigation & Crop Monitoring UAV turns data into irrigation decisions. Its multispectral sensor suite measures plant health indices — NDVI, NDRE and canopy water content — across the field in a single pass. The resulting maps reveal exactly where crops are stressed, over- or under-watered, so irrigation, fertigation and planting can be tuned field-by-field instead of guesswork. An optional soil-moisture link enriches the picture with ground truth. Onboard RTK positioning and automated flight plans make repeatable surveys a matter of scheduling, and the cloud platform turns raw imagery into easy-to-read prescription maps and reports. Farms reduce water and input use while protecting yield — precision where it pays.
Technical Specifications
|
Parameter |
Value |
Note |
|
Sensing Payload |
Multispectral (5 bands) |
NDVI / NDRE / canopy water |
|
Positioning |
RTK cm-level |
Repeatable field surveys |
|
Max Flight Time |
50 min |
Large-field coverage |
|
Thermal Imager (optional) |
640×512 |
Drought & stress detection |
|
Soil Moisture Link |
Optional probe link |
Ground-truth calibration |
|
Flight Planning |
Automated field routes |
One-click surveys |
|
Cloud Platform |
Prescription maps + reports |
Irrigation decision support |
|
Resolution |
< 3 cm GSD at 30 m |
Detailed crop analysis |
Core Operation Parameters
|
Monitoring Parameter |
Standard Normal Range |
Alarm Threshold |
Monitoring Purpose |
|
NDVI Health Index |
0.5–0.9 (healthy) |
Alarm < 0.3 |
Flag stressed crop zones |
|
Canopy Water Index |
Within healthy band |
Alarm outside band |
Guide irrigation timing |
|
Flight Altitude (Survey) |
30–60 m AGL |
< 20 m |
Consistent image resolution |
|
Battery SOC |
30–100 % |
< 20 % auto RTL |
Guarantee safe return to base |
|
GSD Consistency |
< 3 cm variation |
Alarm if changed |
Accurate zone mapping |
